Ram Mounts Double Ball Mount for Lowrance Elite-4 & Mark-4 Series Fish Finder Mount

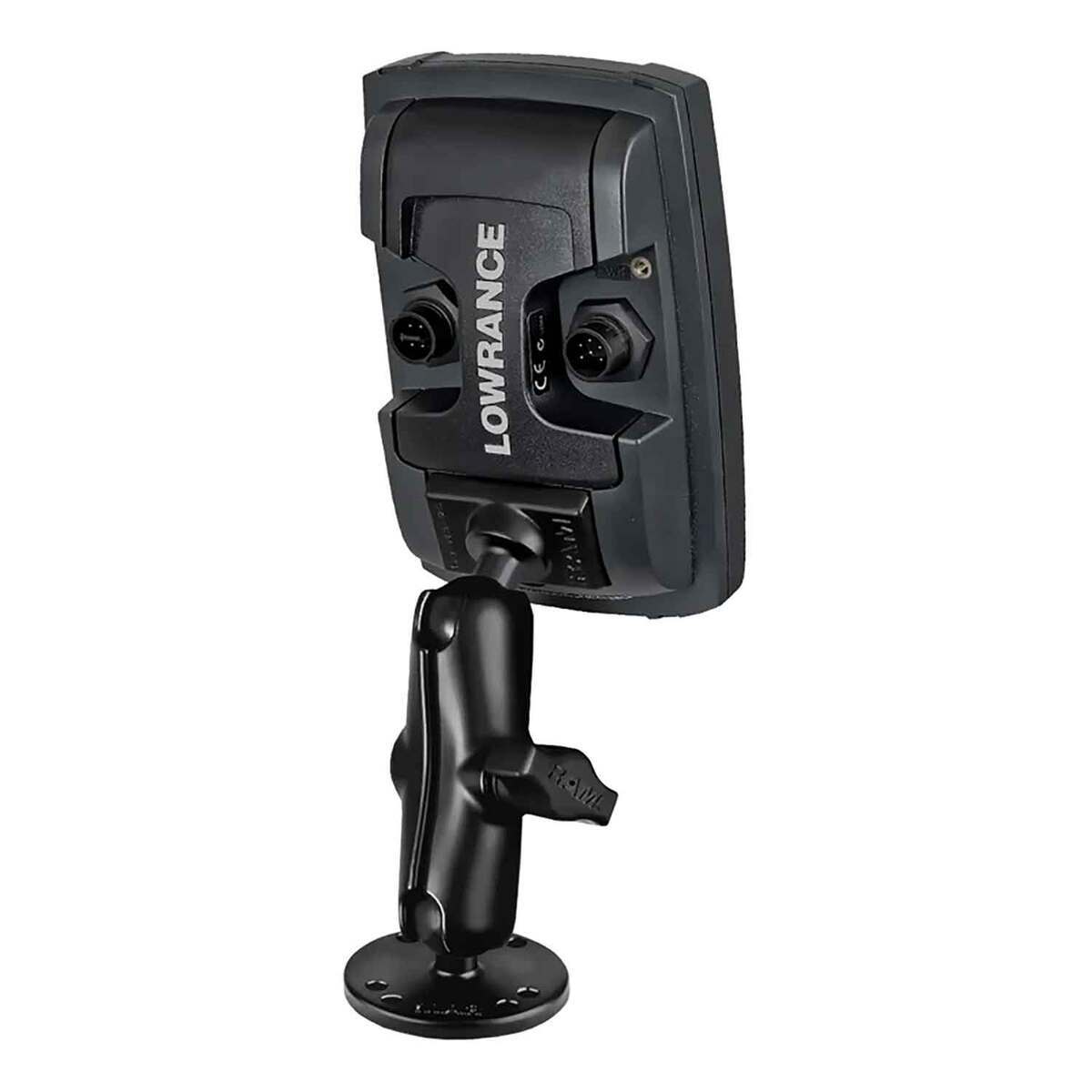

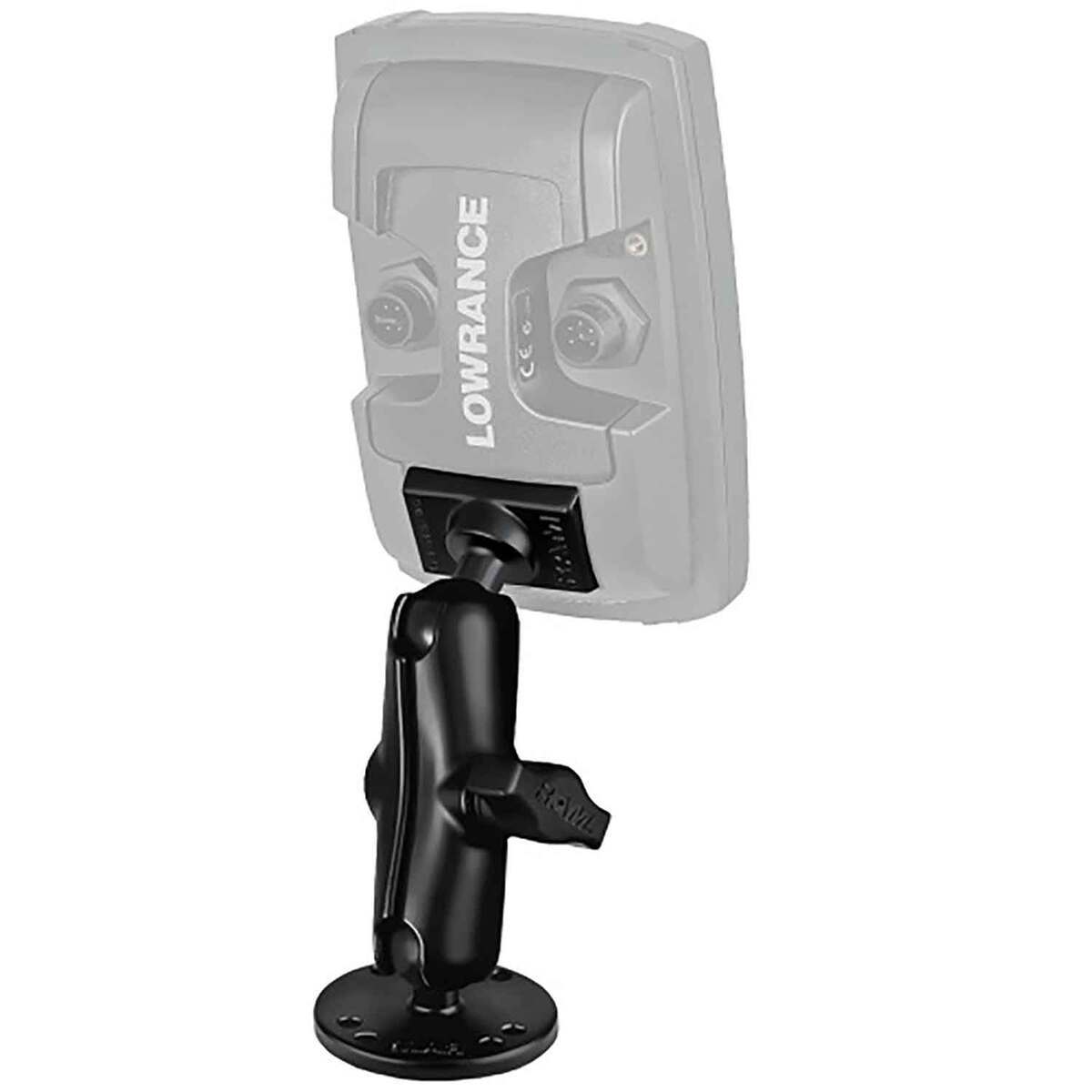

Ram Mounts Ram Double Ball Mount - For Lowrance Elite-4 & Mark-4 Series. The RAM-B-101-LO11 consists of a 2.5in diameter round base with the universal AMPS hole pattern, double socket arm and adapter base that inserts directly to the back of Lowrance Elite-4, Mark-4 and Hook-4 Fishfinders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your Fishfinder in seconds.

Designed into the mount is a 1in diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

• Overall Height: 5in
• Socket To Socket Length - 3in
• Hole Pattern - 4-Hole AMPS: 1.181in x 1.496in, 3-Hole 120-Degree: 1.812in Diameter
• Plate Size - 2.5in Diameter
• Ball Size - B Size (1in)
• Weight Capacity - Standard Use: 2 lbs. Heavy-Duty Use: 1 lb
• Materials - Marine-grade aluminum
• Weight -  0.58 lb
• Additional Information - This product is not compatible with the standard Lowrance Elite-7.
