Leupold VX-3HD CDS-ZL 3.5-10x 40mm Rifle Scope - Duplex


by Leupold
ID 1692379
MPN 180617


Rebates and Offers Offer Details
Explorewards Icon

Leupold VX-3HD CDS-ZL 3.5-10x 40mm Rifle Scope - Duplex


Leupold VX-3HD CDS-ZL 3.5-10x 40mm Rifle Scope - Duplex
by Leupold


Back to top


Leupold VX-3HD CDS-ZL 3.5-10x 40mm Rifle Scope - Duplex - The VX-3HD 3.5-10x40mm delivers legendary performance and extreme clarity in an incredibly tough, lightweight package. Its versatile magnification can get the job done in almost any scenario.

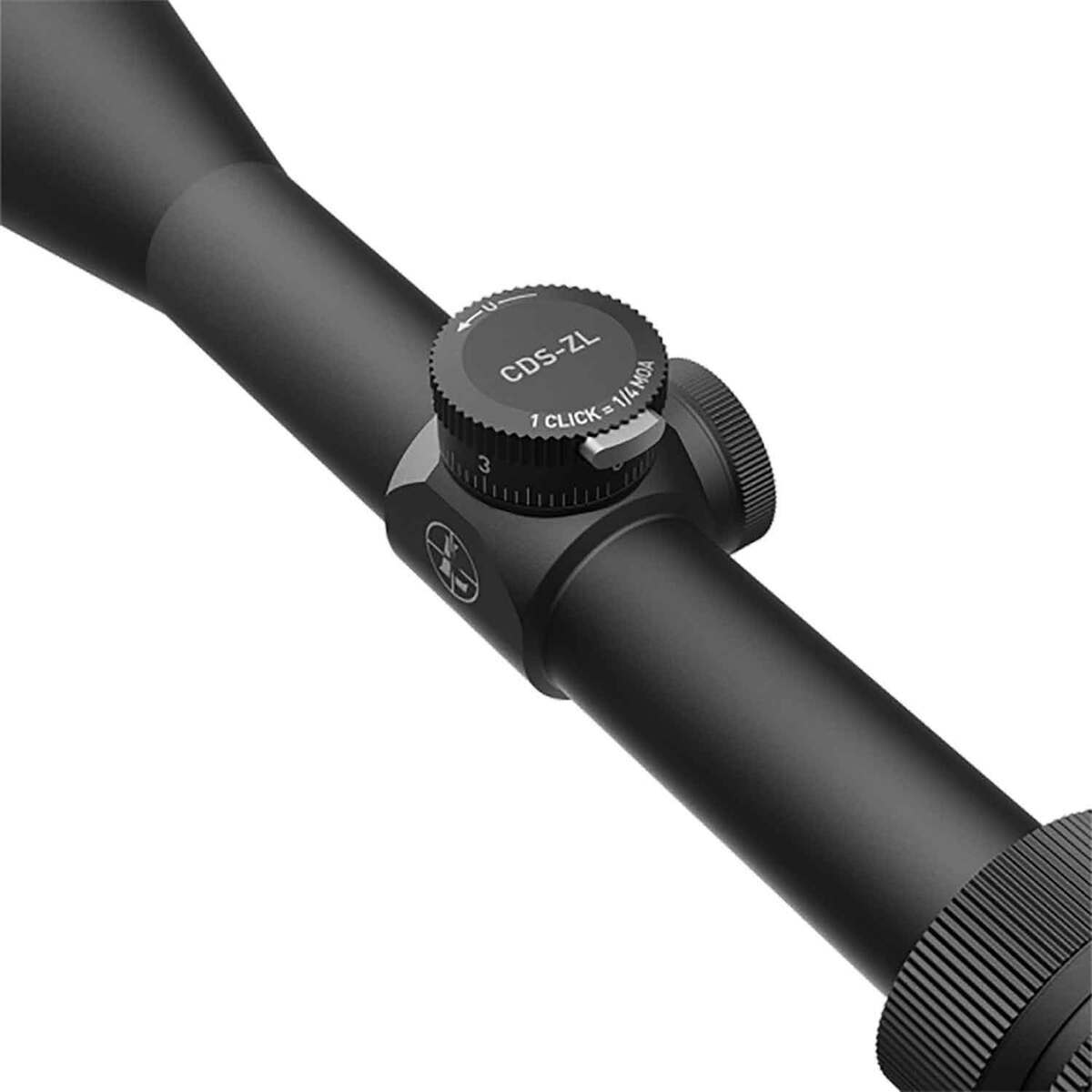

The VX-3HD delivers outstanding performance in low light. With Leupold’s Elite Optical System, the VX-3HD delivers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand. We also gave it match-grade repeatability and ergonomic controls that are easy to read and use, even with gloves. The VX-3HD is the best lightweight, low-light hunting scope in its class. And with its low-profile, one-revolution CDS ZeroLock dial, you can be confident your dial will only move when you want it to. Push the button to unlock it, dial, and then rotate it back to zero to lock it in place. It’s that simple.
Everything we put into your VX-3HD is there to help you tag out. Like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

  • Finish    Matte
  • Adjustable Objective    No
  • Side Focus    No
  • Reticle Focal Plane    Second Focal Plane
  • Elevation Adjustment Type    CDS-ZL
  • Zero Stop    Yes
  • Locking Dial    Yes
  • Revolution Indicator    No
  • Rezero Type    Set Screw
  • Windage Adjustment Type    Finger Click
  • Custom Dial Compatible    Yes
  • BDC Dial Included    No

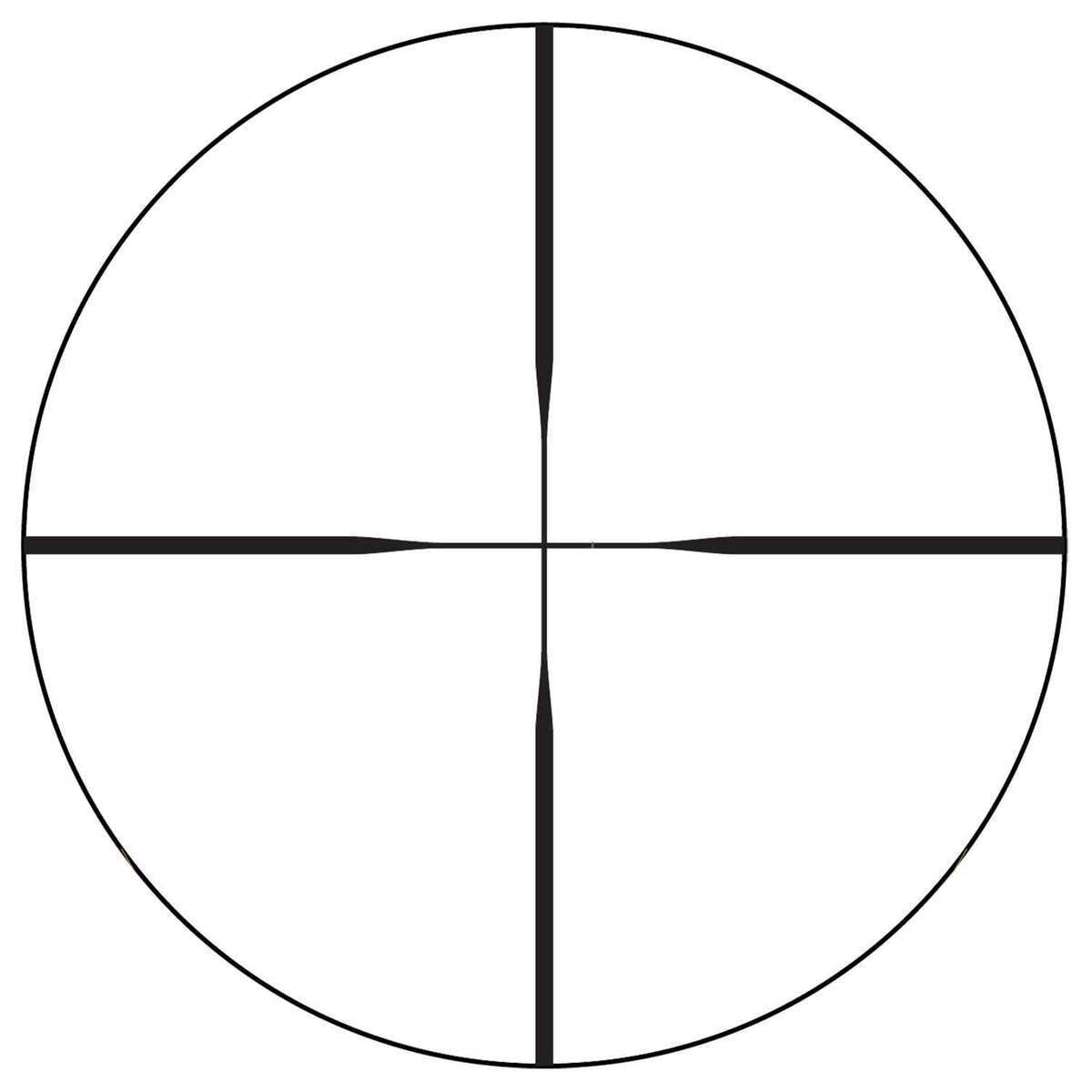

  • Reticle    Duplex
  • Light Management System    Elite Optical System
  • Magnification Type    Variable
  • Illuminated    No
  • Nightvision Compatible Illumination    No
  • Daylight Bright Illumination    No
  • Motion Sensor Technology (MST)    No
  • Electronic Reticle Level    No
  • Guard-ion Lens Coating    No
  • Weight (oz)    13.5
  • Elevation Adjustment Value per Click    1/4MOA
  • Elevation Adjustment Range (MOA)    55
  • Elevation Adjustment Range (MIL)    16
  • Elevation Adjustment Range (cm @ 100m)    160
  • Elevation Adjustment Per Revolution    15 MOA
  • Elevation Dial Travel Limit    14.5MOA
  • Windage Adjustment Value per Click    1/4MOA
  • Windage Adjustment Range (MOA)    55
  • Windage Adjustment Range (MIL)    16
  • Windage Adjustment Range (cm @ 100m)    160
  • Windage Adjustment Per Revolution    15 MOA
  • Magnification Max    10
  • Magnification Min    3.5
  • Objective Lens Diameter (mm)    40
  • Linear FOV Low Mag (ft@100yds)    29
  • Linear FOV High Mag (ft@100yds)    11
  • Angular FOV Low Mag (Degrees)    5.5
  • Angular FOV High Mag (Degrees)    2.1
  • Eye Relief Low Mag (in)    4.4
  • Eye Relief High Mag (in)    3.6
  • Fixed Parallax-Free Distance (yd)    150


Length 12.67in
Reticle Duplex
Model 180617
Type Rifle Scope
Eye Relief 3.6-4.4in
Fov100 29-11ft
Magnification 3.5-10x
Objective Diameter 40mm
Color Black
Adjustment 1/4 MOA
Country of Origin USA
Finish Matte
Focal Plane Second Focal Plane
Max Elevation 55 MOA
Max Windage 55 MOA
Product Line VX-3HD
Tube Diameter 1in
Weight 13.5oz
