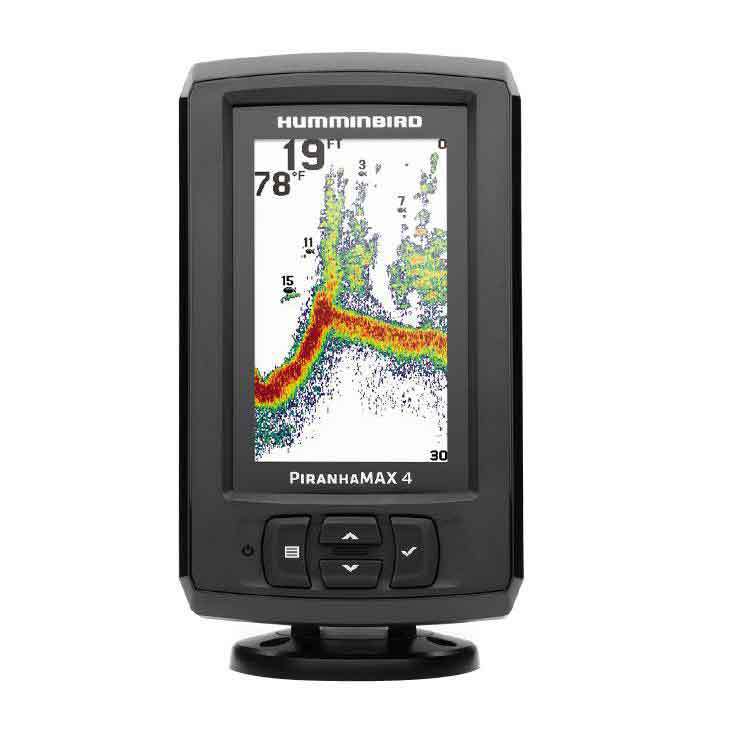

Humminbird PiranhaMAX 4 Fish Finder

ID 1462798
MPN 410150-1


Humminbird PiranhaMAX 4 Fish Finder - The PiranhaMAX 4 has been designed for the angler that is looking for a compact and easy to operate fish finder that is perfectly suited for small watercraft or boats without much spare room.
Explorewards Icon

Humminbird PiranhaMAX 4 Fish Finder


Humminbird PiranhaMAX 4 Fish Finder


Back to top


Humminbird PiranhaMAX 4 Fish Finder - The PiranhaMAX 4 has been designed with a Dual Beam Sonar that allows anglers to see exactly what lies below the waters surface and its tilt and swivel base allows anglers to see the display from anywhere in the boat.


  • Display Pixel Matrix: 480H x 272V
  • Display Type: Color TFT
  • Display Colors Grayscale: 256 Colors
  • Sonar Standard: DualBeam
  • Standard Sonar Coverage: 28 & 16 degrees at -10db
  • Target Separation: 2.5IN
  • Power Output RMS: 300 Watts
  • Backlight: Yes
  • Unit Size - Gimbal Mount: 3.914IN W x 7.335in H x 3.621in D
  • Mount B Unit Size2: 3.914in W x 6.770in H x 2.600in D
  • Power Input: 10.8-20 VDC
  • Power Draw: 180mA


Depth Capacity 320ft (20) 455 kHz 600ft (20) 200 kHz
Display Resolution 272x480
Display Size 4.3in
Frequency 200/455kHz
Model 410150-1
Power Output 300 Watts (RMS), 2400 (Peak-to-Peak)
Type Fish Finder
Made in the USA Yes
