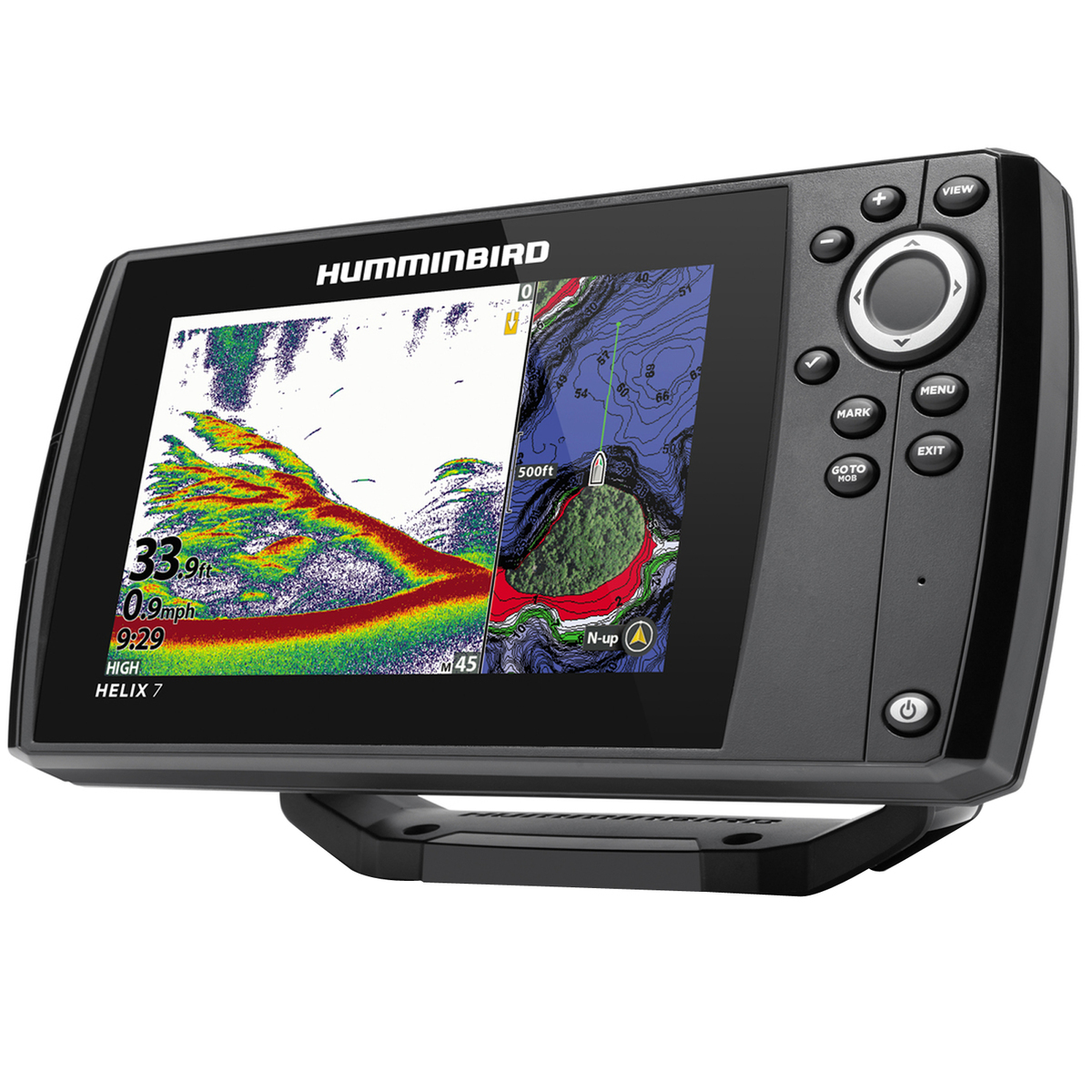

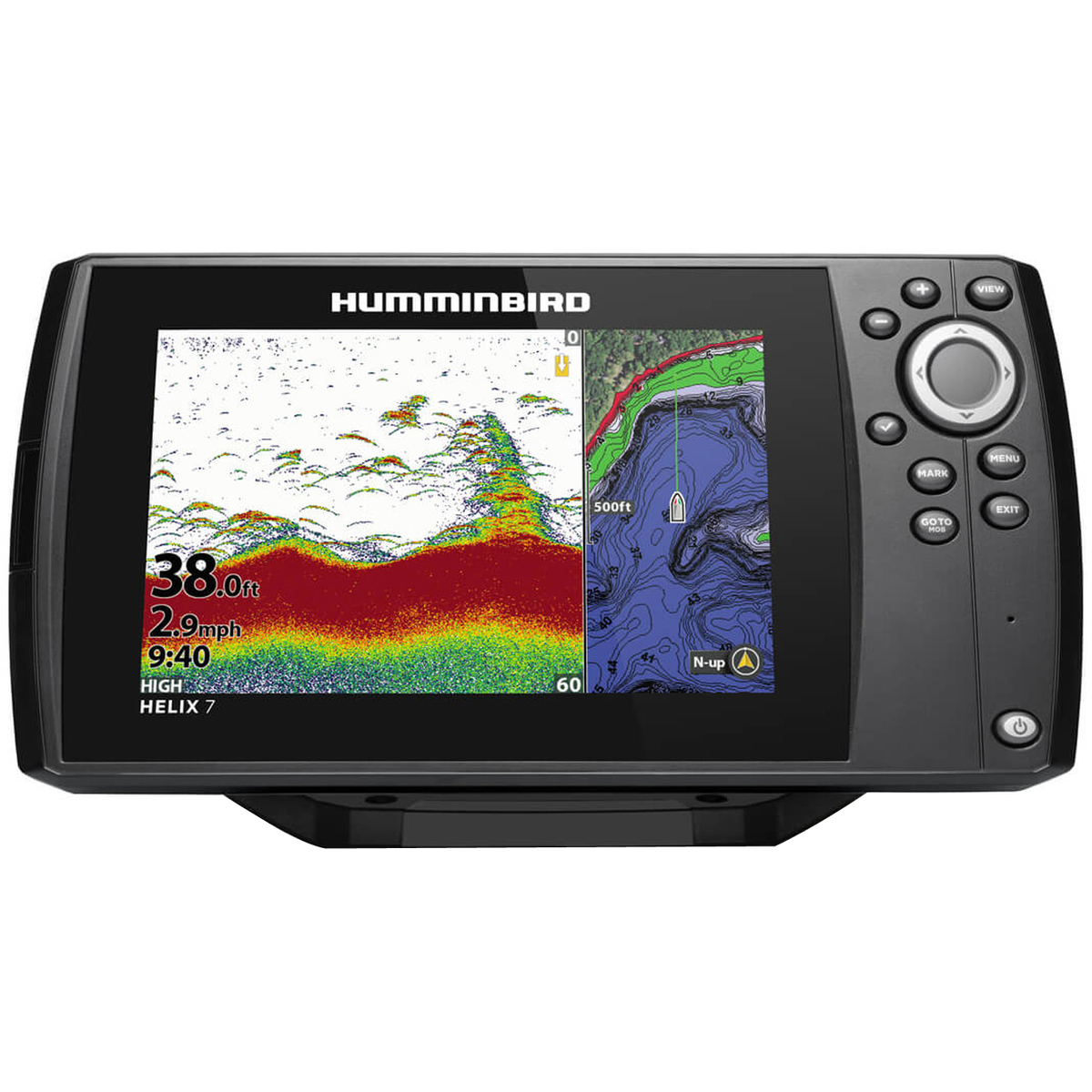

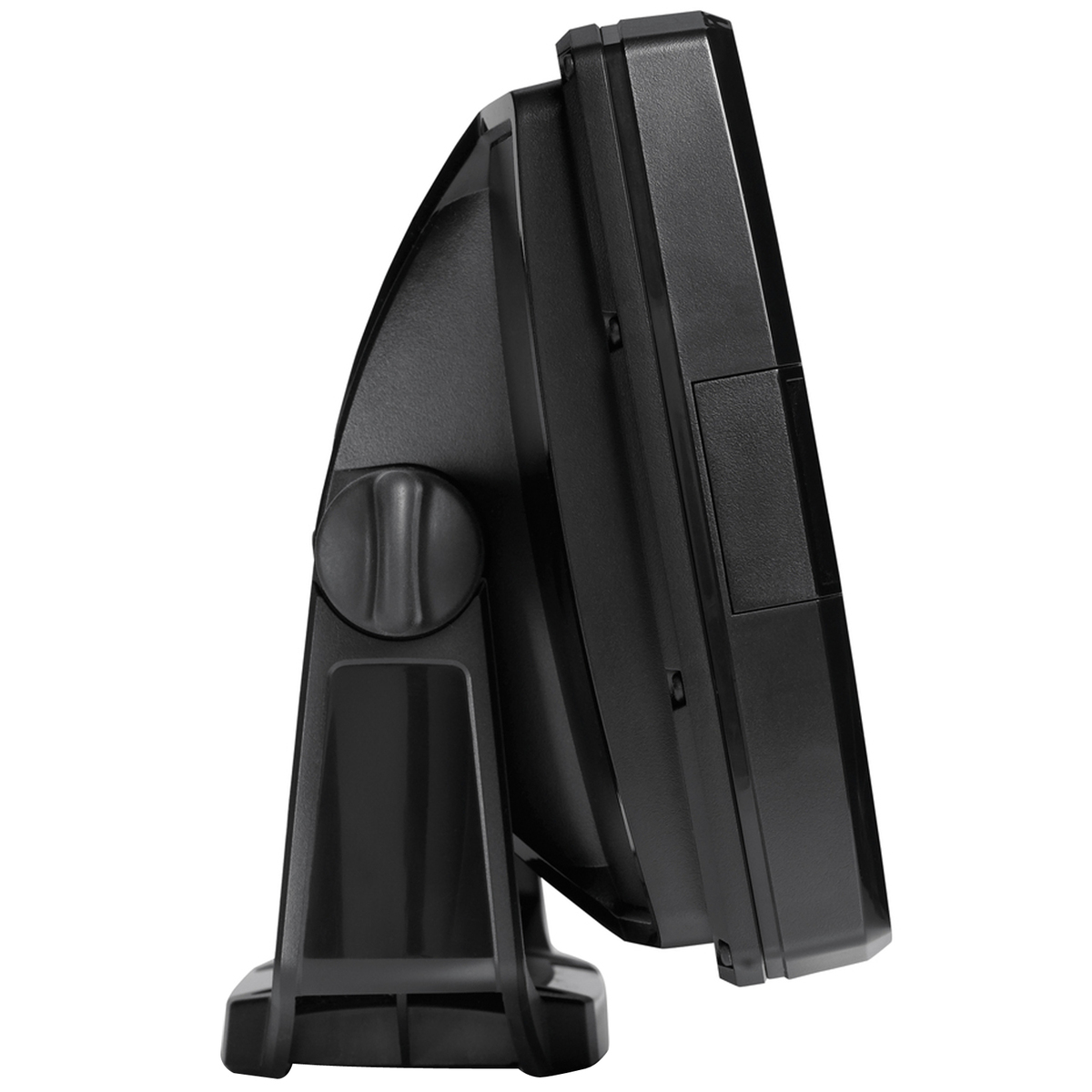

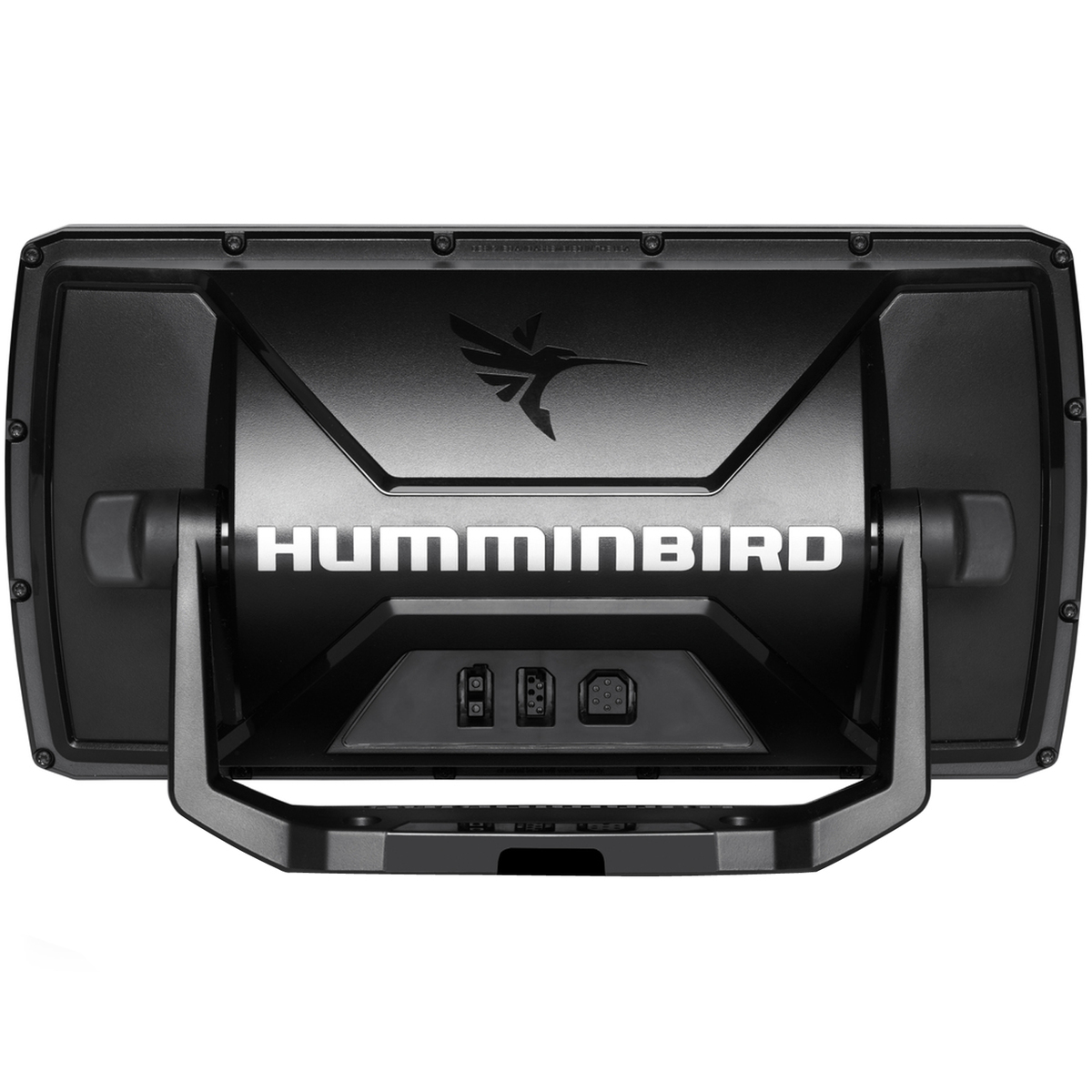

Humminbird Helix 7 Chirp GPS G3 Fish Finder/Chartplotter - The Humminbird Helix 7 Chirp GPS G3 Fish Finder/Chartplotter features Dual Spectrum CHIRP Sonar, AutoChart Live, GPS and Humminbird Basemap built-in. The 7in, ultra-wide display gives you ample room to view the many pre-loaded split screen view options.
- Sonar-Standard: Dual Spectrum CHIRP
- Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
- CHIRP - Frequencies Supported: Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
- Sonar-Frequencies Supported: 50/83/200 kHz
- Interface: Keypad Control
- Memory Card Slot: Single Micro SD
- Power Draw: 800 mA
- Power Input: 10.8-20 VDC
- Power Output Peak-to-Peak: 4000 Watts
- Power Output RMS: 500 Watts
- Screen Snap Shot: Included
- Sonar Recording: Included
- Mount-Standard: Gimbal
- Mount-Standard Size: 10.54in W x 5.8in H x 3.68in D
- Mount-Optional: In-Dash Mounting Kit
- Mount-Optional Size: 10.54in W x 5.44in H x 1.13in D
- Transducer Included: XNT 9 HW T
- Transducer Mount Location: Transom
- GPS Chartplotting: Included
- GPS Receiver: Internal
- GPS Trackplotting: Included
- Waypoints, Routes, Tracks/Points: 2,750, 45, 50/20,000
- 360 Imaging Compatibility: No
- Humminbird Basemap: Included
- LakeMaster Compatibility: Yes
- Minn Kota i-Pilot Link Compatibility: No
- Minn Kota Talon Shallow Water Anchor Compatibility: No
- Navionics Gold/HotMaps Compatibility: Yes
- Navionics Platinum + Compatibility: Yes
- Platinum Compatibility: Yes
- Radar Compatibility: No
- 5-Port Ethernet Switch Compatibility: No
- AIS Compatibility: Optional
- Heading Sensor GPS Compatibility: Yes
- NMEA2000: Not Supported
- Target Separation: 2.5in
- Upgradable Software: Yes
- View Preset Keys: No
- X-Press Menu System: Yes
- Custom Digital Readout: Yes
- Custom View Selections: Yes
- Display Colors Grayscale: 16-Bit
- Display Type: Color TFT
- Temperature: Built-in
- Temperature Alarm: Yes
- Temperature Graph: Yes
|Depth Capacity||1200ft (standard transducer) 3500ft (optional 50 kHz)|
|Frequency||Chirp: Full Mode (150-220kHz), Narrow Mode (180-240kHz), Wide Mode (140-200kHz), Sonar-Frequencies Supported: 50/83/200kHz|
|Power Output||500 Watts (RMS), 4000 (peak to peak)|
|Warranty||Manufacturer 1 Year w/Original Box and Receipt|
|Made in the USA||Yes|
