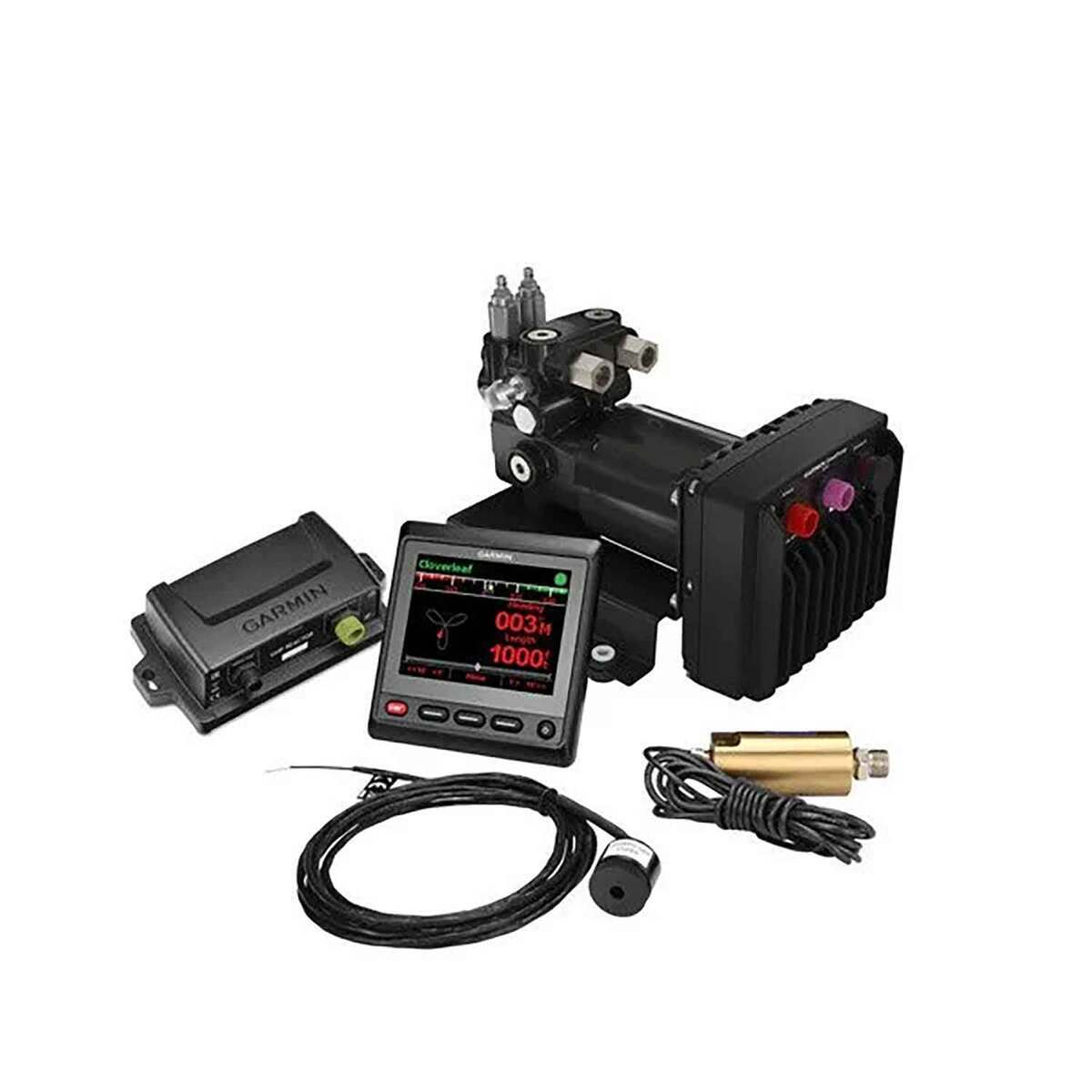

Garmin Reactor 40 Hydraulic Corepack w/SmartPump v2 Marine Electronic Accessory
by Garmin
ID 1742709
|
MPN 010-00705-79
$4,199.99
Garmin Reactor 40 Hydraulic Corepack w/SmartPump v2 Marine Electronic Accessory - With a complete package designed for powerboats and sailboats, Garmin brings an advanced marine technology to the boating public that was once only available for commercial boats.
Added to Your Cart
Advertised prices may display a strikethrough or regular price. The strikethrough or regular price represents either 1) the manufacturer’s Minimum Advertised Price (MAP) OR the Manufacturer’s Suggested Retail Price (MSRP) or 2) a price at which the product was offered within the last 90 days.
1742709
Overview
Garmin Reactor 40 Hydraulic Corepack w/SmartPump v2 Marine Electronic Accessory - With a complete package designed for powerboats and sailboats, Garmin brings an advanced marine technology to the boating public that was once only available for commercial boats. The Reactor 40 autopilot series is simply the most responsive autopilot system Garmin have ever offered. Experience the ultimate hydraulic autopilot performance when paired with the one-size-fits-most, high-reliability, brushless SmartPump v2.
- Solid-state 9-axis Attitude Heading Reference System (AHRS) mounts in any orientation
- Minimal heading error, course deviation, rudder movement and power consumption with a more comfortable ride
- Minimal commissioning and calibration
- One compact, brushless SmartPump v2 fits most hydraulically steered boating applications
- Patented Shadow Drive technology keeps you in control, even when autopilot is engaged
- Dimensions (H x W x D): 197 mm x 190 mm x 244 mm
- Weight: 7.5 kg
- Temperature range: From -15°C to 55°C
- Material: Electronics Control Unit (ECU) - fully gasketed, aluminium alloy; bracket - carbon steel; manifold - aluminium alloy; motor - aluminium alloy
- Power cable length: 2.7 m
- Power input: 11.5-30 Vdc
- Fuse: 40 A, blade-type
- Main power usage: standby - less than 1 A; engaged - 5-10 A; peak - 34 A
- Flow rate: Configurable from 0 to 2.4 L per minute
- Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in
- Dimensions: 3 19/32" diameter (91.4 mm)
- Weight: 159 g
- Temperature range: From -15°C to 55°C
- Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
- CCU cable length: 3 m
- NMEA 2000 power input: 9-16 V
- NMEA 2000 LEN: 3 (150 mA)
- Dimensions (L × Diameter): 23 mm × 25 mm
- Weight: 68 g
- Temperature range: from -15°C to 55°C
- Cable length: 3.0 m
Specifications
| Model | 010-00705-79 |
| Touchscreen | No |
| Type | Marine Electronic Accessory |
